Extended Greasable Shackles Lift Kit For Toyota Landcruiser 40 60 75 Series
Contents | |
Product Detail |

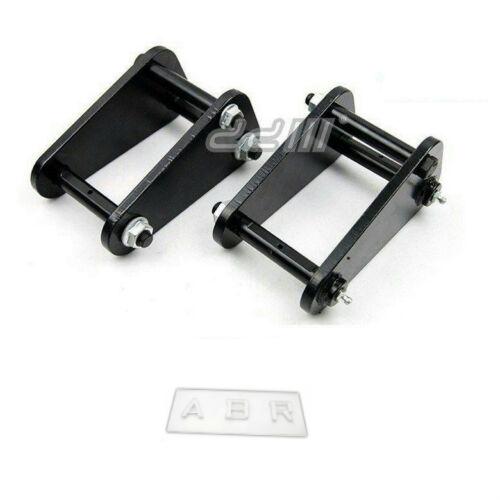

2 x Extended Shackles |
Size |
25 (L) x 30 (W) x 15 (H) |
Weight (V) |
6 (kg) |
Weight (A) |
- |
Reference |
- |
Product Fit
- Toyota Landcruiser 73-75 Series, 40 Series, 60 Series
- Nissan GU GU PATROL
Product Info

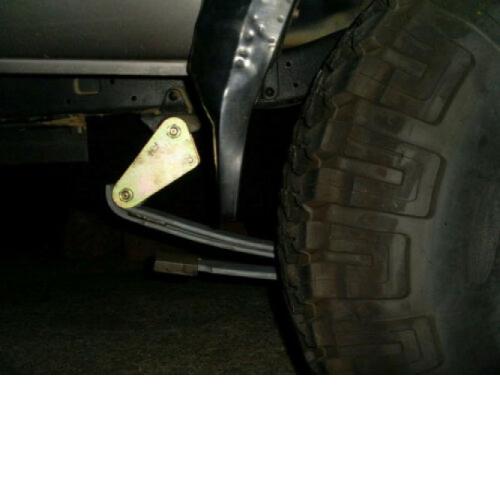

- We would like to share,if you are after more flex in your vehicles rear end, then Extended Shackles are an easy way to achieve it. Basically the extended shackle creates agreater sweeping arc of the shackle which in turn provides for more wheel travel and a nicer ride. DD Extended Shackles are engineered to the highest standard, with factory size Greasable Pins (to allow installation of factory bushings) and 50mm extended plates.

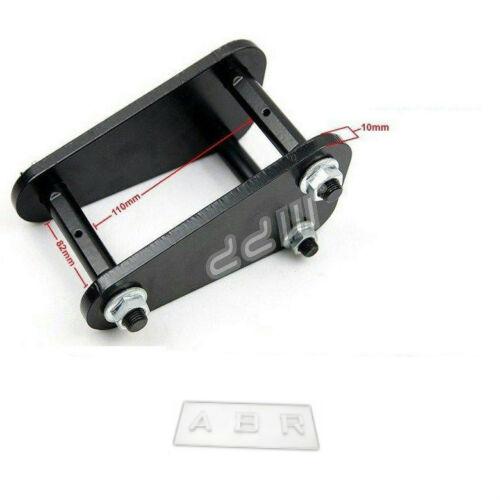

- All DD extended shackles incorporate a stepped bolt design, ensuring that the shackles cannot be overtightened, it features side plates made from 10mm laser cut steel, CNC machined and welded pins with an anti-inversion pin to avoid the danger of leaf spring inversion. Welded design is far superior to other designs on the market as it reduces shackle walking and flexing under load. Others are designed around a centre welded support with no outer support where it is needed. Coated black to blend with the chassis.
- Shackles are greaseable. resulting in deformation of the bushings. Giving 50mm more length than the factory shackle you will also see a lift of between approx. 25-30mm.
