ON-BOARD HIGH PERFORMANCE 12 VOLT AIR COMPRESSOR JEEP LOCKER Tyre Inflator 4X4

Tax included. Shipping calculated at checkout.

Contents

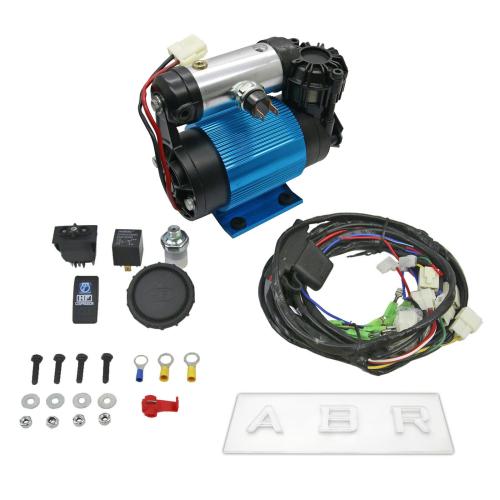

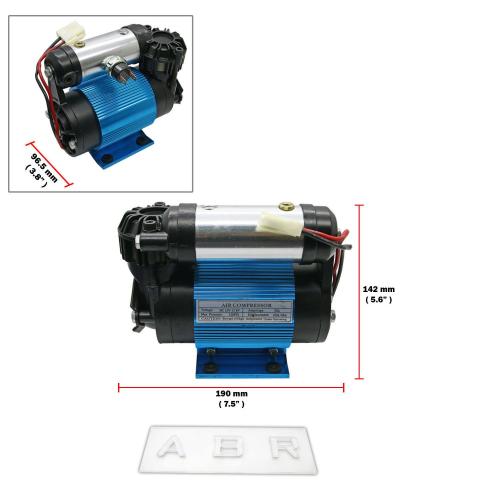

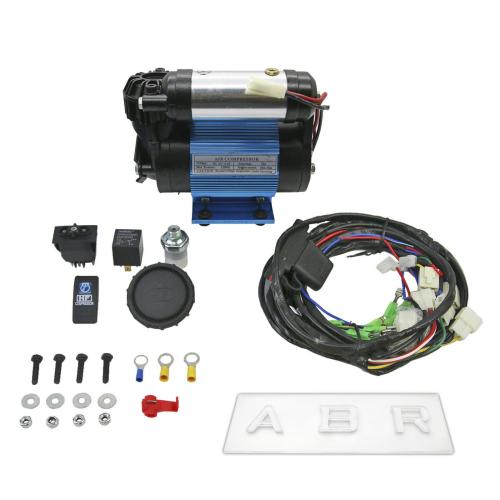

Product Detail	1 x Compressor with wiring and switches · Voltage: 12 Volts · Amperage : 30A · Air Flow No Load: 2.65 CFM · Air Flow Under Load: 2.18 CFM · Max Pressure : 150 PSI · Displacement : 100L / Min · Duty Cycle: 50% · Size: 5.6"" Height, 7.5"" Length, 3.8"" Width
Size	28 (L) x 28 (W) x 17 (H)
Weight (V)	5 (kg)
Weight (A)	-
Reference	L-RAO

Product Info

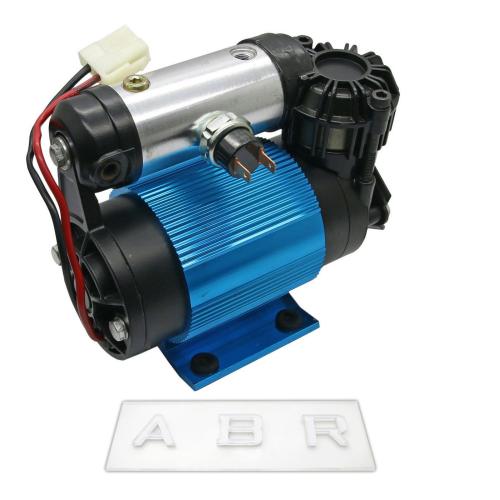

Permanently mounted, this compressor is installed into your truck and includes a full wiring loom with air locker solenoid plug in contacts, mounting hardware with reinforcing bracket and quality compressor isolating switch. This compressor, with the addition of HF Pump-Up Kit can be used to activate air lockers, and can perform other functions such as inflating camping gear.
It's small enough to fit into even the tightest space and quiet enough to mount in the cab.

Product Features

Air Locker Solenoid Mounting Manifold
Pressure Cutout Switch
Air Filter Equipped
Thermal Overload Protected Motor
Automotive current load protection in loom
Capable of running both front & rear air lockers simultaneously
Compact design makes it the highest flowing compressor in its class (voltage vs size)
Fully sealed components for moisture and dust
Pressure switch controlled air manifold systems specially designed to suit Air Locker equipped vehicles
Hard anodized cylinder bore and PTFE (Teflon) impregnated carbon fiber piston seal for reduced friction and maximum trouble free life
New anodized mounting bracket dissipates motor heat and allows compressor to be repositioned 180°
Anti-vibration/sound deadening mount
Relocatable splash resistant air filter assembly for cleaner, cooler air supply and versatile waterproof air intake positioning
High density, high flow washable sintered bronze air filter element
Maxi-Fuse equipped for professional in-line circuit protection
Motor is 100% ball bearing equipped with unique linear brush pre-load system for extra long life, low heat and quiet operation
Compressor piston is equipped with a German made high shock rated cylindrical roller bearing
Constructed entirely of light weight, high strength engineering grade materials, includin military and aerospace grade components
Over-pressure safety valve equipped
Motor is internally thermal protected against extreme temperature damage
